● Auto Switch Pro – Suta Master

6 Wire Suta – Auto Switch Pro Suta Master

Intelligent 6-wire Auto Switch Pro with Suta Master function – designed specially for agricultural and industrial three-phase motors where supply is highly fluctuating. Adjust the number of automatic start attempts and protect your motor from frequent ON/OFF due to poor voltage.

Brand: BOPARAI
Model: 6 Wire Suta
Category: Auto Switch / Suta Master
₹3,499.00
Inclusive of all taxes
  View Full Details
🧠 Microcontroller-based Suta Master control ⏱️ 0–10 adjustable suta settings ⚙️ 6-wire connection – easy for panel builders

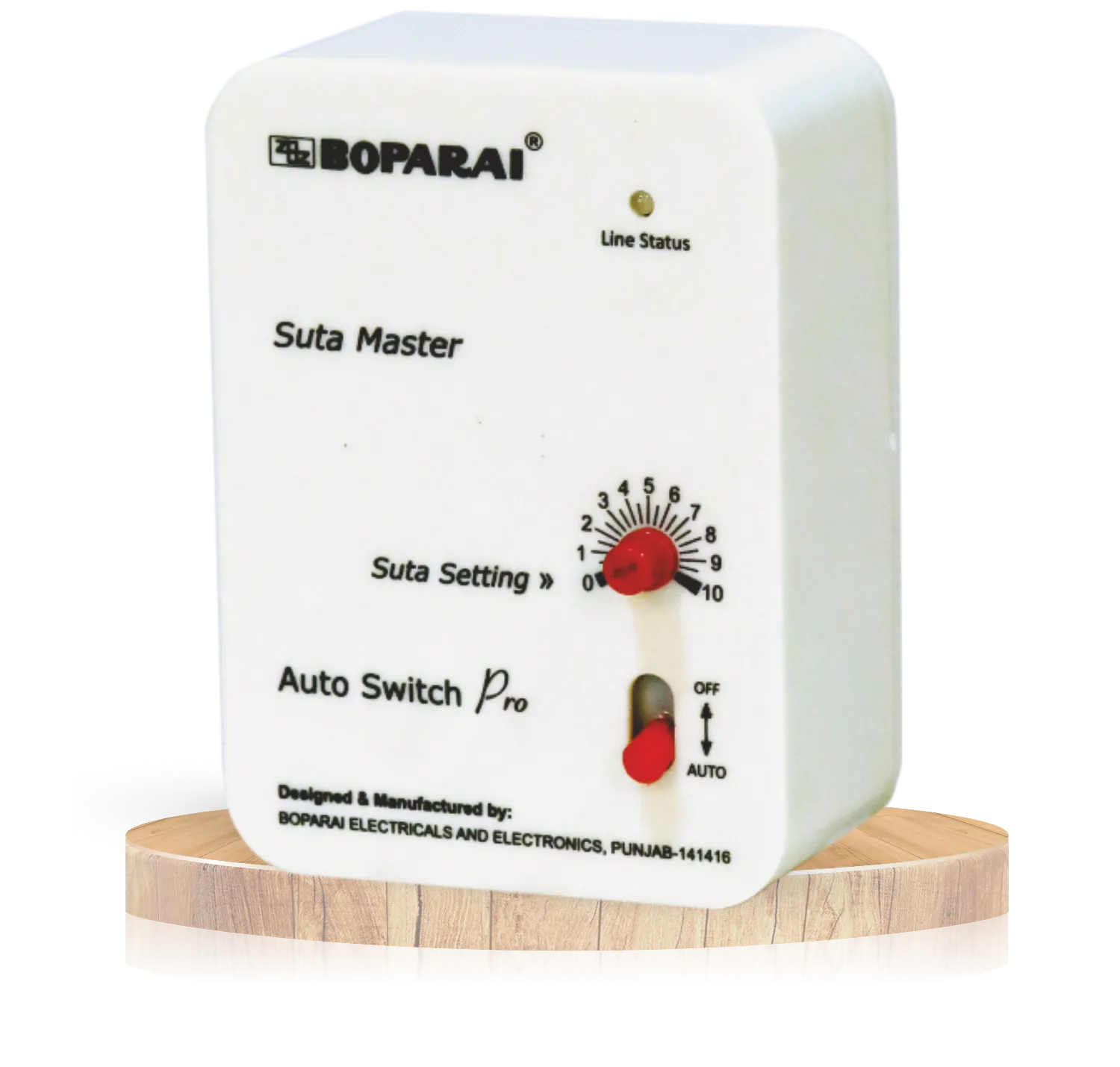

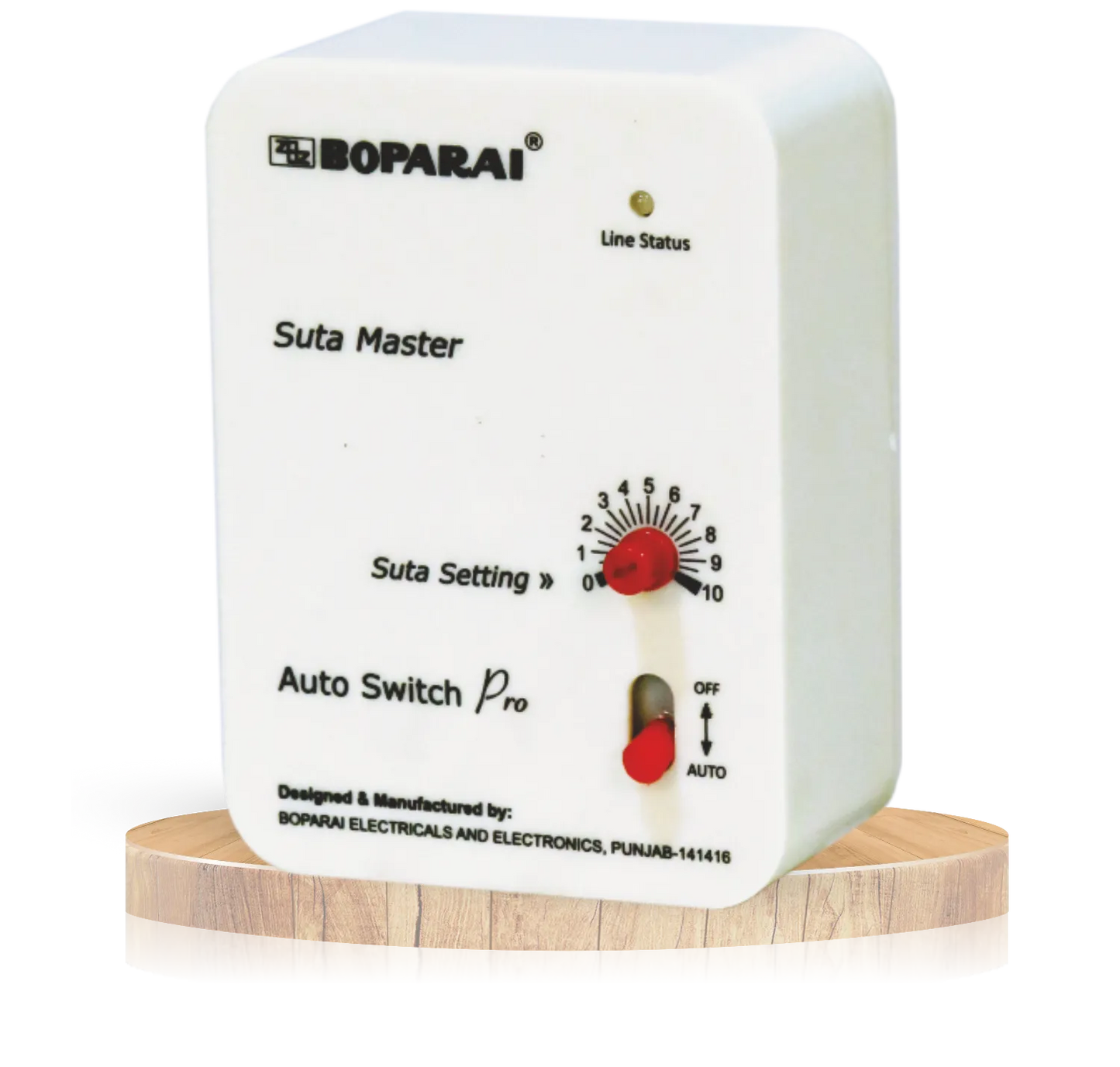

6 Wire Suta Auto Switch Pro Suta Master

Image for illustration. Label & design may vary with production batch.

Product Overview

Control how many times your motor should start automatically.

6 Wire Suta Auto Switch Pro is a special version of the auto switch that adds Suta Master logic. Using the front Suta Setting knob (0–10), you decide how many automatic start attempts the controller will make when power is available.

This is extremely useful in rural areas where voltage drops and frequent power trips can damage motors. Once the preset number of start attempts (suta) is complete, the controller locks out further starts until you reset it, keeping your motor safe from abuse.

  • Prevents continuous ON/OFF cycling of motors in low-voltage areas.
  • Line status LED to show supply presence.
  • Front selector for OFF / AUTO operation.
  • Compatible with most three-phase starters (via 6-wire control).
  • Compact, wall / panel mount design.

Key Specifications

Product Type 6 Wire Auto Switch Pro – Suta Master
Technology Microcontroller-based electronic control
Motor Type Three-phase induction motors (agriculture / industrial)
Suta Range 0 to 10 selectable attempts (front dial)
Modes AUTO with Suta control / OFF (front toggle)
Indicators Line Status LED
Wiring 6-wire connection between controller, supply & starter
Enclosure High-grade plastic body, wall / panel mount
Typical Applications Tube-well starters, agriculture pumps, industrial motor panels

Salient Features

  • Adjustable suta setting lets you limit auto-start attempts.
  • Helps avoid motor burn-out in low voltage and bad supply conditions.
  • Simple front controls – farmers and operators can easily adjust.
  • Works with a wide range of motor HP (as per starter rating).
  • Compact design that fits easily in new or existing control panels.

Frequently Asked Questions

Doubts about Suta Master & 6-wire connection? Start here.

What does “Suta” mean in this product?
+
In this controller, Suta refers to the number of automatic start attempts allowed. Using the dial you can set 0–10 sutay; after that, the controller will not try to restart the motor automatically, protecting it from repeated ON/OFF cycles.
Will it work with any existing 6-wire auto switch wiring?
+
Yes, the unit is designed for standard 6-wire control circuits used in many agriculture and industrial panels. Your electrician or panel builder can simply replace the old controller with this Suta Master.
Can I bypass the Suta function and run in normal auto mode?
+
Yes. Keeping the dial at a higher value and using the front OFF/AUTO switch allows you to use it as a regular auto switch with protection logic, while still having the option to limit attempts if required.
Who should install this product?
+
Installation, wiring and protection settings must always be done by a qualified electrician or panel technician. This ensures safe operation with correct overload and short-circuit protection.
Trusted Suta Master solution for agriculture and industrial panels.
Helps extend motor life by reducing unnecessary starts.

Control Motor Starts with Suta Master

Install the 6 Wire Suta Auto Switch Pro and protect your motor from frequent ON/OFF in poor power conditions.
